Pitco Fryer Common Parts & Their Functionalities

Welcome to the World of Pitco Fryers: Revolutionizing Commercial Cooking

In the bustling world of commercial kitchens, efficiency, reliability, and consistency are paramount. Enter Pitco, a leading name in the realm of commercial deep fryers. Established with a commitment to excellence, Pitco has been at the forefront of culinary technology, crafting fryers that stand up to the rigors of high-demand environments.

Pitco specializes in designing and manufacturing advanced fryers tailored for the foodservice industry. Their range of products includes everything from traditional fryers to innovative models that incorporate the latest in heating technology and energy efficiency. With a focus on durability and performance, Pitco fryers are engineered to deliver crisp, golden results every time, all while maximizing operational efficiency and safety.

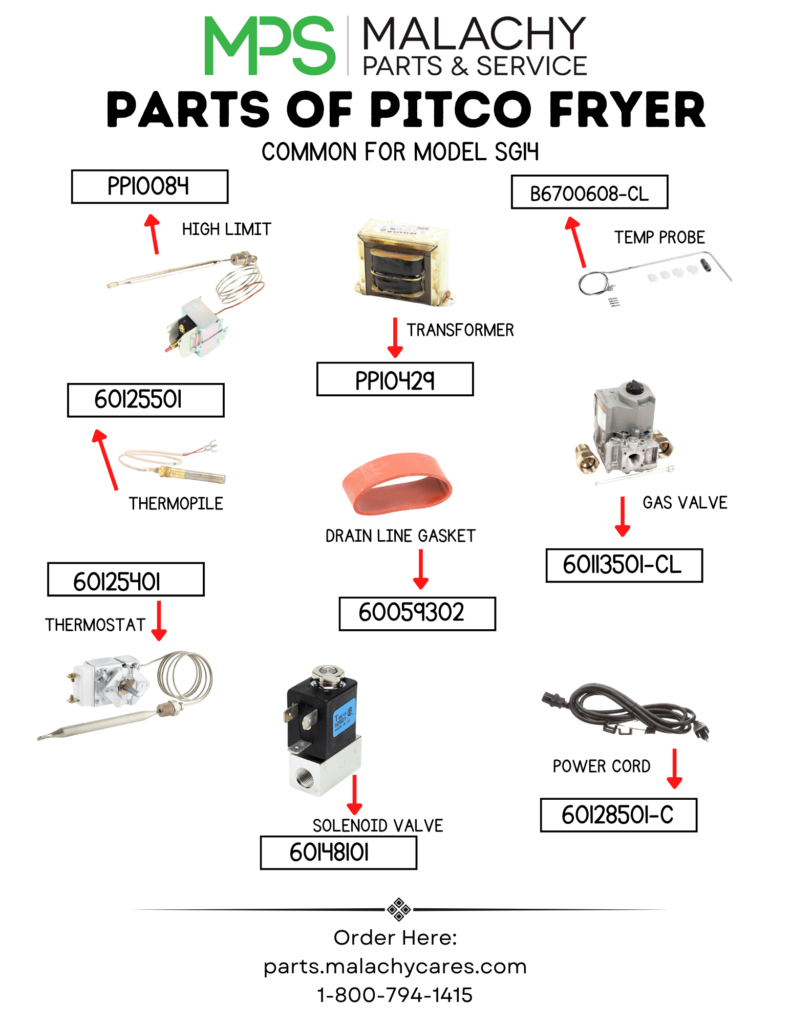

Join us as we delve into some of the key parts for model SG14 and all of their functionalities. Our technicians know the equipment, the parts and have the knowledge to properly diagnose issues. Here are some of the top parts from high limits to thermopiles!!

The Pitco fryer high limit control, model PP10084, is a critical safety component in commercial deep fryers. Its primary function is to prevent the fryer from overheating and potentially causing a fire or damaging the equipment.

Here’s a breakdown of its key functions:

Overheat Protection: The high limit control monitors the temperature of the fryer. If the temperature exceeds a preset limit (which is higher than the normal operating temperature), the high limit control will shut down the fryer to prevent overheating.
Safety Shutdown: In case of malfunction or excessive temperatures, the high limit control activates a safety shutdown mechanism. This ensures that the fryer stops heating, which helps in preventing dangerous situations and maintaining safe operating conditions.
Reset Function: After the high limit control has tripped and shut down the fryer, it often requires a manual reset to resume operation. This is to ensure that the underlying cause of the overheating is addressed before the fryer is restarted.
Temperature Regulation: While the primary role is safety, the high limit control also helps in maintaining the proper temperature range by ensuring that the fryer doesn’t exceed its maximum temperature limit.

In essence, the PP10084 high limit control acts as a safeguard to protect both the fryer and its operators by ensuring that the fryer operates within safe temperature limits.

The Pitco fryer probe, model B6700608-CL, is an essential component in a commercial deep fryer. Its primary functionality is to measure the temperature of the fryer oil.

Here’s a breakdown of its key functions:

Temperature Sensing: The probe continuously monitors the temperature of the frying oil. This real-time temperature data is crucial for maintaining optimal cooking conditions and ensuring food is cooked evenly.
Temperature Regulation: The probe works in conjunction with the fryer’s thermostat and control systems. It helps regulate the oil temperature by providing accurate readings that allow the fryer to maintain a consistent temperature. If the oil temperature deviates from the set point, the control system adjusts the heating elements accordingly.
Safety: By providing accurate temperature measurements, the probe helps prevent overheating of the oil, which can lead to safety hazards such as fires or damage to the fryer. It ensures that the oil remains within a safe operating range.
Cooking Consistency: Accurate temperature measurement is vital for consistent cooking results. The probe helps ensure that the oil temperature remains steady, leading to uniform cooking of food items.

In summary, the B6700608-CL probe is crucial for the proper functioning of a Pitco fryer. It ensures accurate temperature measurement, helps regulate the oil temperature, contributes to safety, and supports consistent cooking performance.

The Pitco fryer thermopile, model 60125501, plays a vital role in the operation of commercial deep fryers. Its primary function is related to the fryer’s ignition system and flame sensing.

Here’s a detailed look at its functionalities:

Flame Sensing: The thermopile detects the presence of a flame in the fryer. It is typically used in conjunction with a pilot light system. The thermopile generates a small voltage when it is heated by the pilot flame. This voltage is then used to signal that the flame is present.
Safety Function: If the thermopile does not detect a flame, it will prevent the fryer from operating. This safety feature is crucial because it helps prevent gas leaks and potential hazards that could arise from the fryer operating without a flame.
Generating Voltage: The thermopile converts thermal energy from the flame into electrical energy (voltage). This voltage is used to power the gas valve or control system, allowing the fryer to operate safely.
Ignition System Support: In many fryers, the thermopile supports the ignition system by ensuring that the gas valve remains open only when the flame is present. This helps to ensure that the fryer remains operational only under safe conditions.
Temperature Control: While the primary role of the thermopile is flame sensing, its operation contributes indirectly to maintaining proper temperature control in the fryer by ensuring that the gas is properly regulated based on flame detection.

In summary, the 60125501 thermopile is a key safety component in a Pitco fryer. It detects the presence of the pilot flame, generates voltage to power the gas valve, and ensures that the fryer operates safely and efficiently.

The Pitco fryer gas valve, model 60113501-CL, is a critical component in managing the gas supply to a commercial fryer. Its primary functions involve controlling the flow of gas to the fryer’s burners, ensuring safe and efficient operation.

Here’s a breakdown of its key functionalities:

Gas Flow Control: The gas valve regulates the amount of gas flowing to the fryer’s burners. By adjusting the gas flow, it helps maintain the desired cooking temperature and ensures the fryer operates efficiently.
Ignition and Flame Maintenance: During the ignition process, the gas valve allows gas to flow to the burners. Once the pilot flame or ignition system has ignited the gas, the valve maintains the flow of gas to ensure a consistent flame for cooking.
Safety Shutoff: The gas valve includes safety features that automatically shut off the gas supply if the flame goes out or if there is a malfunction. This is crucial for preventing gas leaks, which could lead to safety hazards such as fires or explosions.
Temperature Regulation: The gas valve works in conjunction with the fryer’s thermostat and temperature control systems. It adjusts the gas flow based on the temperature readings to keep the fryer operating within the desired temperature range.
Manual Control: The gas valve often includes manual control options that allow the fryer operator to adjust the gas flow as needed for different cooking conditions or to perform maintenance tasks.
Integration with Other Components: The gas valve integrates with other fryer components, such as the thermopile (which detects the presence of a flame) and the thermostat (which monitors and controls the cooking temperature).

In summary, the Pitco fryer gas valve model 60113501-CL is essential for controlling the gas supply to the fryer. It ensures safe ignition, maintains proper gas flow for consistent cooking, integrates with the fryer’s temperature control systems, and includes safety mechanisms to prevent gas leaks and ensure safe operation.

The Pitco fryer thermostat, model 60125401, is a crucial component in the temperature control system of a commercial deep fryer. Its primary function is to regulate and maintain the frying oil at the desired temperature for optimal cooking performance.

Here’s a detailed look at its functionalities:

Temperature Regulation: The thermostat monitors the temperature of the fryer oil. It is responsible for maintaining the oil within a specific temperature range. When the oil reaches the set temperature, the thermostat signals the fryer to stop heating. When the temperature drops below the set point, the thermostat signals the fryer to turn the heating elements back on.
Consistent Cooking: By keeping the oil at a consistent temperature, the thermostat ensures uniform cooking results. This helps in achieving consistent food quality and prevents overcooking or undercooking of items.
Automatic Control: The thermostat operates automatically based on the temperature of the oil. It continuously adjusts the heating elements to maintain the desired temperature without requiring manual intervention.
Safety: In conjunction with other components like the high limit switch, the thermostat helps ensure the fryer operates safely. If the oil temperature exceeds the maximum safe limit, the high limit switch will shut down the fryer to prevent overheating, while the thermostat manages normal temperature regulation.
Temperature Adjustment: Most thermostats allow for adjustments to set the desired cooking temperature. This flexibility is important for different types of food that require different frying temperatures.
Integration with Other Components: The thermostat works with other fryer components such as the gas valve (in gas fryers) or heating elements (in electric fryers) to control the cooking process effectively. It also interacts with safety devices like the high limit control to ensure safe operation.

In summary, the Pitco fryer thermostat model 60125401 is essential for maintaining precise temperature control in a fryer. It regulates the heating elements to keep the oil at a consistent temperature, contributing to consistent cooking results, safety, and efficient operation.

The Pitco fryer transformer, model PP10429, is an important component used in the electrical system of commercial deep fryers. Its primary function is to step down the voltage from the main power supply to a lower voltage that can be used by various components within the fryer.

Here’s a detailed look at its functionalities:

Voltage Conversion: The transformer converts high voltage AC (alternating current) from the main power supply to a lower, safer voltage required by the fryer’s control system and other electrical components. This ensures that sensitive components receive the appropriate voltage for proper operation.
Power Supply for Control Systems: The lower voltage output from the transformer powers various control systems in the fryer, such as the thermostat, timers, and control boards. These components often operate at lower voltages for safety and precision.
Safety: By stepping down the voltage, the transformer helps to minimize the risk of electrical shock and damage to the fryer’s components. It ensures that the fryer operates safely within its designed electrical specifications.
Component Compatibility: The transformer provides the necessary voltage for other critical components such as solenoids, igniters, and sensors, allowing them to function correctly. It ensures that all components receive the appropriate voltage for their specific requirements.
Electrical Isolation: The transformer also provides electrical isolation between the high voltage power supply and the low voltage components. This isolation helps protect sensitive electronic components and enhances overall fryer safety.
Voltage Stability: By converting and stabilizing the voltage, the transformer helps maintain consistent operation of the fryer’s electronic systems. This contributes to reliable performance and prevents fluctuations that could affect the fryer’s operation.

In summary, the Pitco fryer transformer model PP10429 is essential for converting high voltage AC power to a lower voltage suitable for the fryer’s electrical components. It ensures safe operation, provides the necessary power for control systems, and helps maintain electrical stability and compatibility within the fryer.

The Pitco fryer power cord, model 60128501-C, is a fundamental component that connects the fryer to the electrical power supply.

Its primary functions include:

Power Supply Connection: The power cord provides the necessary electrical connection between the fryer and the power source. It carries the electrical current from the outlet to the fryer’s internal components, allowing the fryer to operate.
Voltage and Current Transmission: The power cord is designed to handle the voltage and current requirements of the fryer. It ensures that the fryer receives the appropriate amount of electrical power needed for its heating elements, controls, and other electrical systems.
Safety: The power cord is constructed with safety in mind, featuring insulation and protective materials to prevent electrical hazards. It helps ensure that the electrical connection remains secure and prevents electrical shorts or shocks.
Durability: The cord is built to withstand the demanding conditions of a commercial kitchen, including exposure to heat, grease, and mechanical stress. This durability is crucial for ensuring long-term, reliable operation.
Ease of Replacement: If the power cord becomes damaged or worn out, it can be replaced relatively easily, allowing for minimal downtime and continued safe operation of the fryer.
Compliance: The power cord must meet electrical and safety standards to ensure it is suitable for commercial kitchen environments and complies with relevant regulations.

In summary, the Pitco fryer power cord model 60128501-C is essential for providing a safe and reliable electrical connection between the fryer and the power source. It ensures proper power transmission, supports the fryer’s electrical components, and contributes to overall safety and durability.

The Pitco fryer drain gasket, model 60059302, is a key component used to ensure a proper seal between the fryer’s drain valve and the drain opening.

Here’s an overview of its primary functionalities:

Leak Prevention: The drain gasket creates a watertight seal between the fryer’s drain valve and the drain opening. This prevents oil, water, or other liquids from leaking out of the fryer during or after operation. Without a proper seal, there could be leaks that lead to messes, safety hazards, and potential damage to the surrounding area.
Maintaining Hygiene: By preventing leaks, the drain gasket helps maintain a clean and hygienic environment in the kitchen. It minimizes the risk of oil or food residue spilling out, which can contribute to better sanitation and easier cleanup.
Efficient Draining: The gasket ensures that the drain valve functions properly by providing a secure seal. This helps in the efficient draining of oil or other liquids from the fryer, making it easier to clean and maintain the fryer.
Protection of Components: A properly sealed drain valve prevents the entry of contaminants and moisture into the fryer’s internal components. This protects the fryer’s internal mechanisms and prolongs the life of the equipment.
Reducing Wear and Tear: The gasket helps reduce wear and tear on the drain valve and other components by providing a snug fit and reducing friction. This can lead to fewer maintenance issues and longer-lasting parts.
Ease of Replacement: Over time, gaskets can wear out or become damaged. The drain gasket is designed for easy replacement, allowing for straightforward maintenance and ensuring continued leak-free operation.

In summary, the Pitco fryer drain gasket model 60059302 is essential for creating a leak-proof seal between the drain valve and the fryer’s drain opening. It prevents leaks, maintains hygiene, supports efficient draining, protects internal components, and reduces wear and tear, contributing to the overall performance and longevity of the fryer.

The Pitco fryer solenoid, model 60148101, is an essential component in the gas control system of a commercial deep fryer.

Here’s a detailed overview of its functionalities:

Primary Functions:

Gas Flow Control: The solenoid controls the flow of gas to the fryer’s burners. It acts as a valve that opens or closes to allow or block the passage of gas. When the solenoid is energized, it opens to permit gas flow, enabling the fryer to heat up. When de-energized, it closes to stop the gas flow, which is crucial for controlling the frying process and ensuring safety.
Ignition Support: In many fryers, the solenoid is part of the ignition system. It ensures that gas only flows when the ignition system is functioning properly and a flame is present. This helps prevent gas from leaking into the fryer without being ignited, which could lead to hazardous conditions.
Safety Mechanism: The solenoid is a critical safety feature that prevents gas leaks and potential hazards. If the fryer’s control system detects a problem, such as the pilot light going out, the solenoid will close to stop the gas flow, thereby reducing the risk of dangerous gas leaks.
Temperature Regulation: By controlling the gas flow, the solenoid helps regulate the fryer’s temperature. It works in conjunction with the fryer’s thermostat and other control systems to maintain the desired cooking temperature.
Automation: The solenoid allows for automated control of the fryer’s gas supply. It responds to electronic signals from the fryer’s control system, enabling precise control of the heating process without requiring manual adjustments.
Ease of Maintenance: The solenoid is designed for easy replacement and maintenance. If it malfunctions, it can be replaced without major disassembly, ensuring minimal downtime and continued safe operation of the fryer.

In Summary:

The Pitco fryer solenoid model 60148101 is crucial for controlling the flow of gas to the fryer’s burners. It supports the ignition system, ensures safety by preventing gas leaks, assists in temperature regulation, and facilitates automated control. Its role in managing gas flow is vital for both the efficient operation of the fryer and the safety of the kitchen environment.
